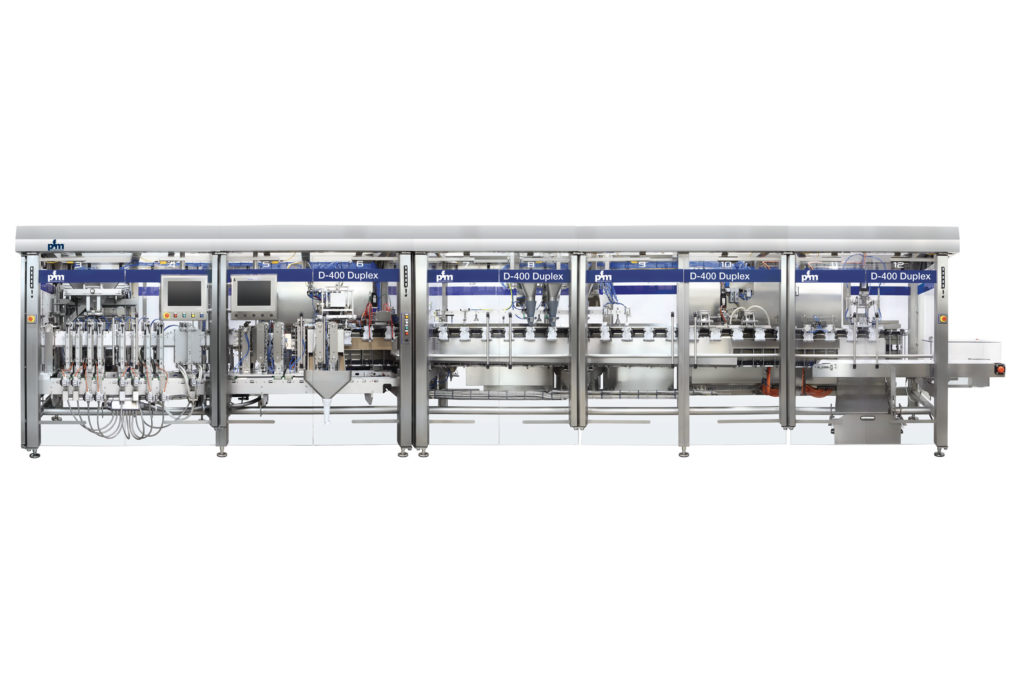

D400

Fully Servo controlled Horizontal Form Fill Seal Pouch machine with outstanding simplicity, compactness, accessibility and speed in format changeovers.

Available in the Duplex version, it can produce up to 120 stand-up pouches per minute (max. width 200mm).

The D400 is easy to use because:

  • It automatically controls the film stretch
  • It self-adjusts the acceleration of the film according to the required sealing time
  • The film passage is made easier
  • Format changeover takes an average of 20 minutes
  • It provides information on the time left before the end of the reel
  • It is can be easily accessed, inspected and cleaned.

All functions and operations are under control in real-time, parameterized and repeatable.

VersionPackage dimensions Min (base x height)Package dimensions Max (base x height)Speed (cycles/min)Speed (packages/min)
D 90 x 100 mm200 x 300 mm60120
